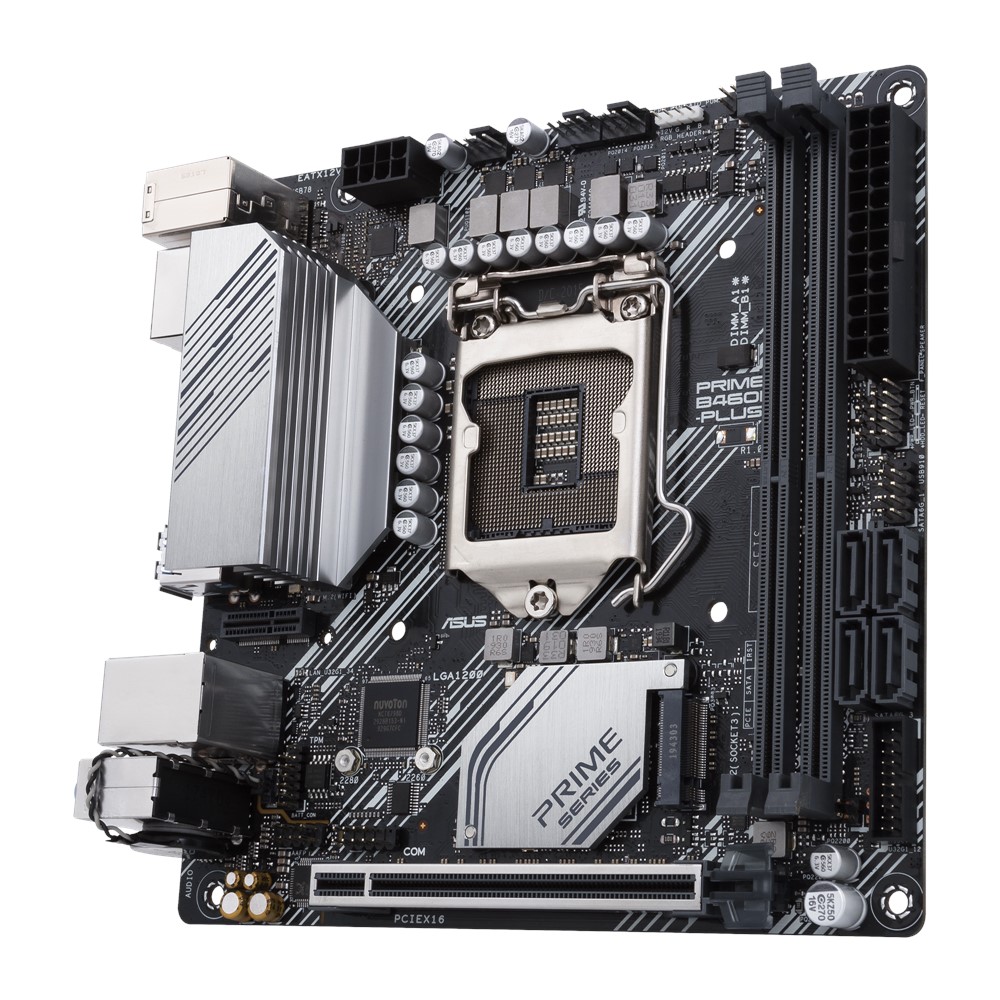

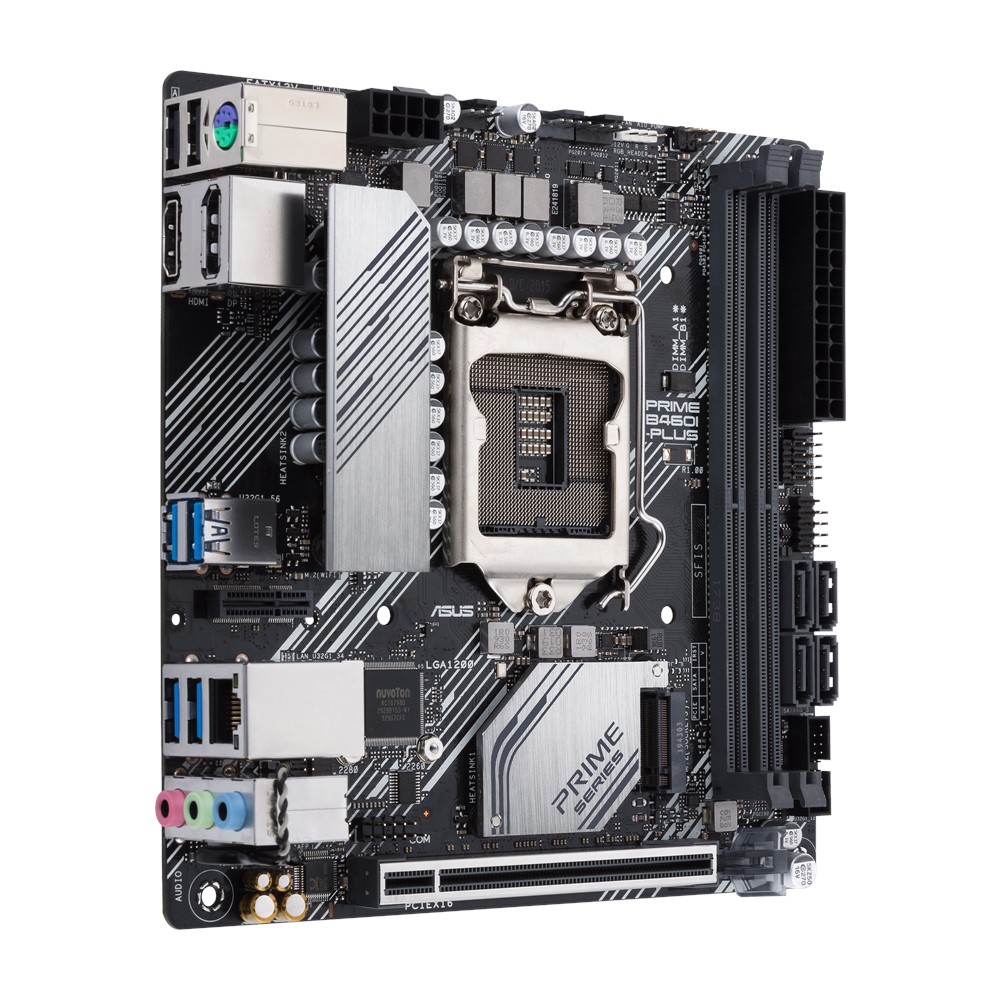

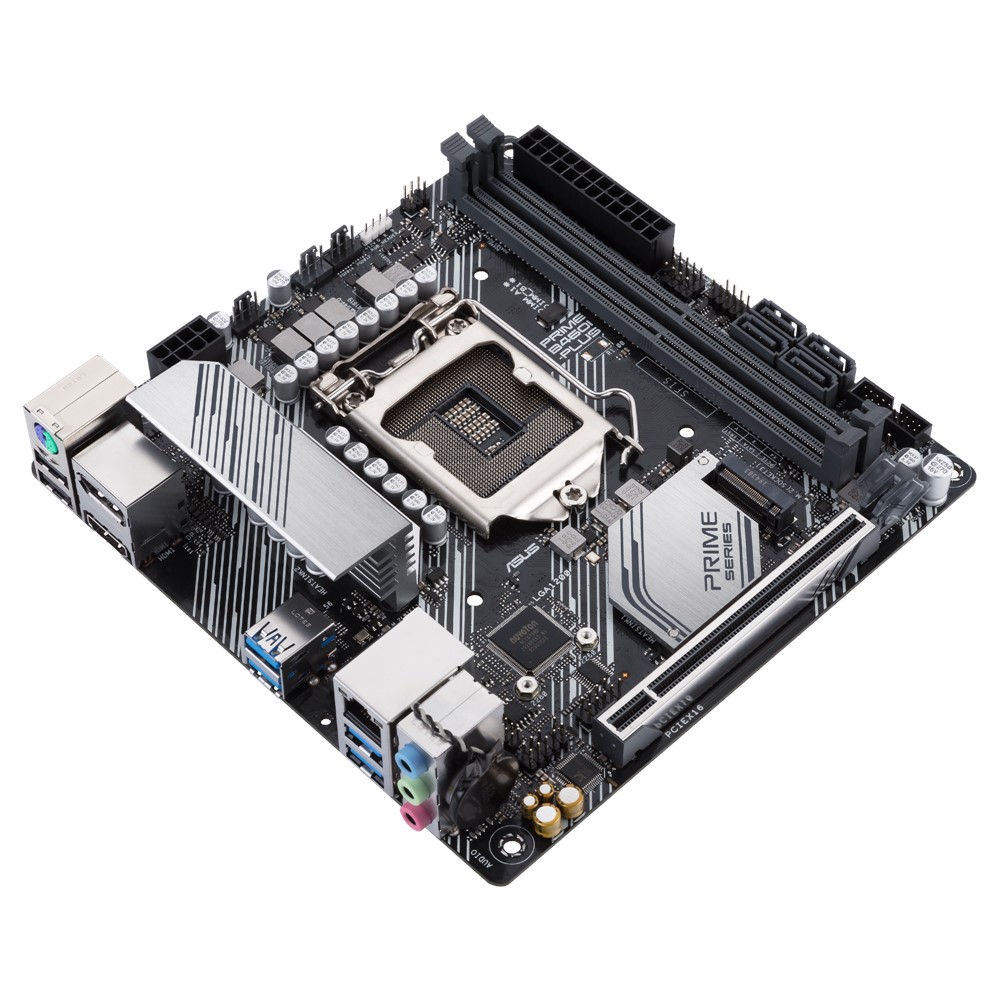

ASUS PRIME B460I-PLUS Mainboard
CPU
- Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors *
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset
- Intel® B460

Memory
Intel® B460 Chipset
- 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively

Graphic
Integrated Graphics Processor - Intel® UHD Graphics support
- 1 x DisplayPort 1.4
- 1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.

Expansion Slots
- 16-Lane CPU-
- 1 x PCIe 3.0/2.0 x16 (x16 mode)

Storage
- Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® B460 Chipset :
- 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
- 4 x SATA 6Gb/s port(s)
- Support Raid 0, 1, 5, 10
- Intel® Rapid Storage Technology supports
- Intel® Optane™ Memory Ready

LAN
- Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Wireless Data Network
- M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.

Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports
Rear USB Port ( Total 6 )
- 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
- 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
- 2 x USB 2.0 port(s)

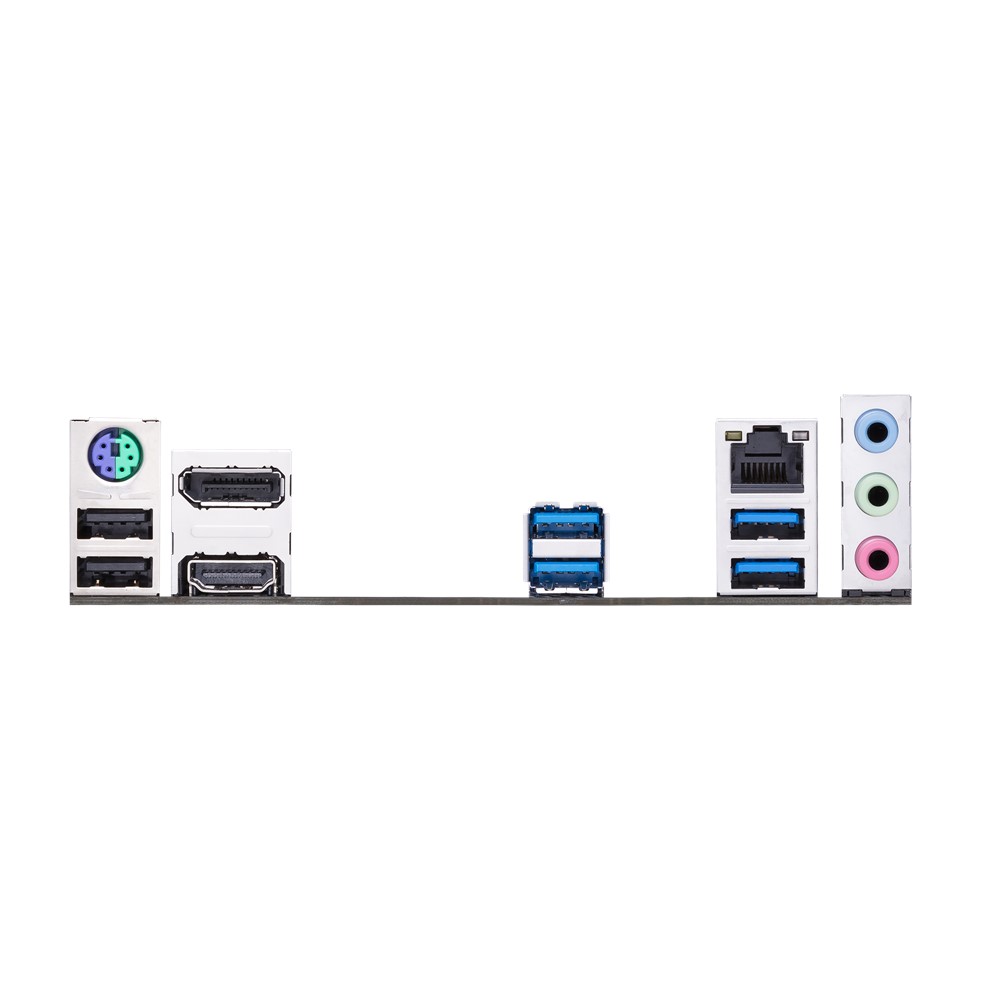

Back I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0
- 3 x Audio jack(s)

Internal I/O Ports
- 1 x CPU Fan connector(s) (1 x 4 -pin)
- 1 x Chassis Fan connector(s)
- 1 x AIO_PUMP connector
- 1 x AAFP connector
- 1 x Aura RGB Strip Header(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
- 1 x M.2 Socket 3
- 1 x M.2 with E key for Wi-Fi module
- 1 x SPI TPM header
- 4 x SATA 6Gb/s connector(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin ATX 12V Power connector(s)
- 1 x System panel(s)
- 1 x Clear CMOS jumper(s)
- 1 x COM port header
- 1 x Speaker connector

Accessories
- User's manual
- 1 x Vertical M.2 bracket set
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD

BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS

Manageability
- WOL by PME, PXE

Operating System
- Windows® 10 64-bit

Form Factor
- Mini ITX Form Factor
- 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )

Note
*NVME RAID is supported with M.2 and PCIe X16.PCIe x16´s device needs to use Intel brand.
