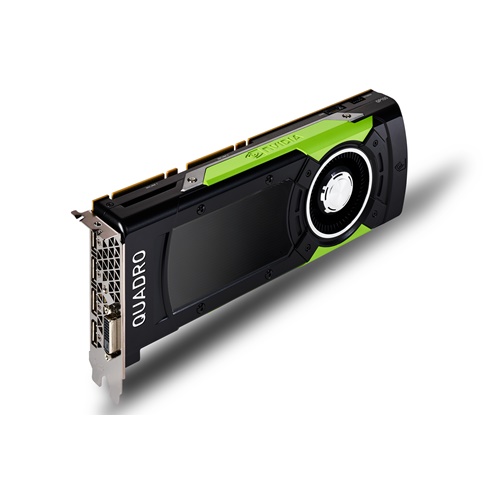

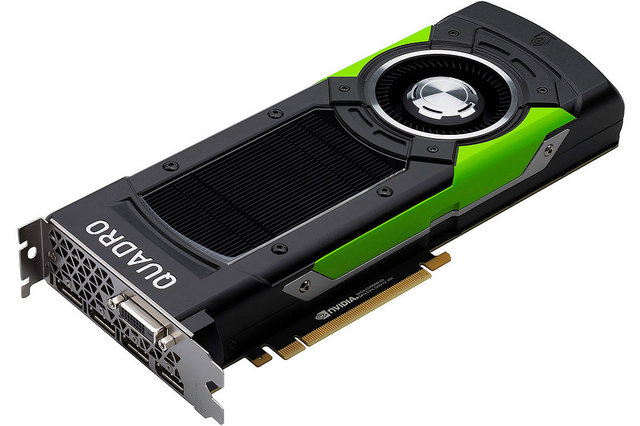

NVIDIA Quadro P6000

Most Advanced Visual Computing Platform
for Workstations

• Pascal GPU
• 3840 CUDA Cores
• 24 GB GDDR5X CPU memory capacity
• Up to 432GB/s memory bandwidth
• PCI Express 3.0 system interface
• 12 TFLOPS FP32 performance
• 250W max. power consumption
• 4 x DP 1.4 + DVI-D DL display connectors
• Max resolution: 7680 x 4320 @ 30Hz
• Support ECC protection
• Quadro Sync 2 Compatible
• Support Quadro SLI HB Bridge
•

Pascal Dynamic Load Balancing

Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization

Pascal Compute Preemption

Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out

Simultaneous Multi-Projection, SMP

Complete stereo rendering of geometry in a single pass to double the effective throughput for applications such as VR

Quadro Sync II Compatibility

Synchronize the display and image output of up to 32 displays from 8 GPUs (connected through two Sync II boards) in a single workstation, reducing the number of machines needed to create an advanced video visualization environment

SLI HB Bridge

Leverage multiple GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system. 5K resolution in SLI mode supported
