Key Features
• Smart Mesh technology
• 802.11ac Wave 2 2X2:2 MU-MIMO radios
• Remote management and monitoring capability
• Separate guest and employee Wi-Fi network
• Mobile app and cloud portal
In the box

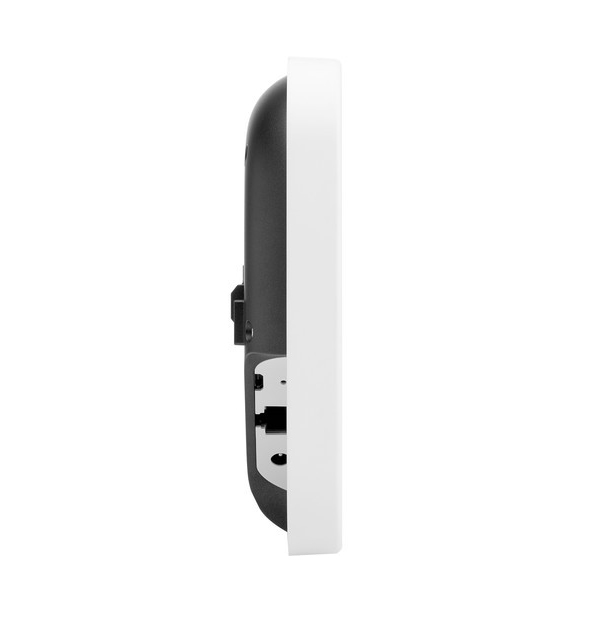

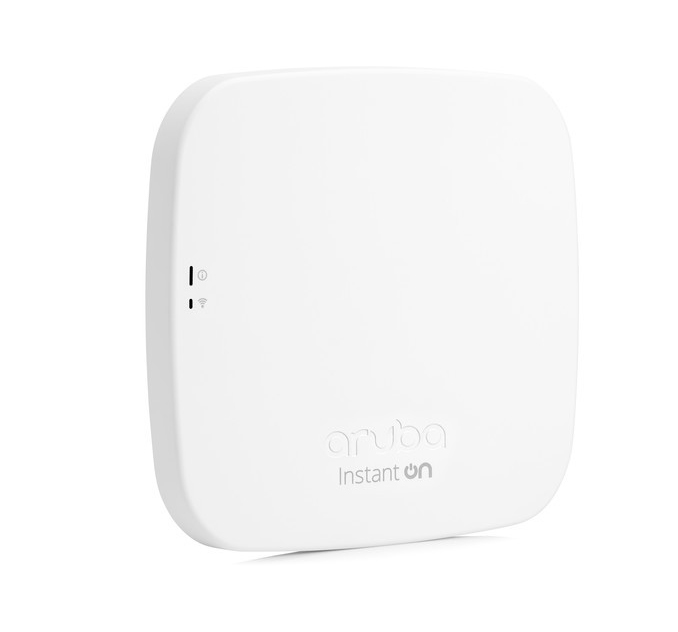

• 1 x Aruba Instant On AP11 Indoor Access Point
• 1 x Aruba Instant On AP11 Quick Start guide
• 1 x ceiling rail mount clip
• 1 x solid surface mount clip
• 1 x Ethernet cable
Radios
• Dual radio for simultaneous dual-band operation
• 5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
• 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
Interfaces
• 1 x Uplink Gigabit Ethernet port, with POE-in support (802.3af)
• 1 x DC power connector (12V)
• 1 x Bluetooth Low Energy (BLE) radio
• 2 x LED status indicators
• 1 x Reset/LED control button
• 1 x Kensington security slot
Physical characteristics
• Dimensions: 34 x 152 x 152 mm (1.3 x 6.0 x 6.0 in), H x W x D
• Weight: 193 g (0.4 lb)
Power
• Power over Ethernet (POE): 802.3af (class 3)
• DC power (12V)
• NOTE: Power sources are sold separately
Environmental and reliability
• Operating temperature: 0° C to +40° C (+32° F to +104° F)
• Humidity: 5% to 93% non-condensing
• MTBF: 795khrs (91yrs) at +25° C
Management
• Instant On mobile application (Android and iOS)
• Cloud Portal: Portal.ArubaInstantOn.com
Industry certifications
• UL 2043 plenum rating
• EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
• Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE).
